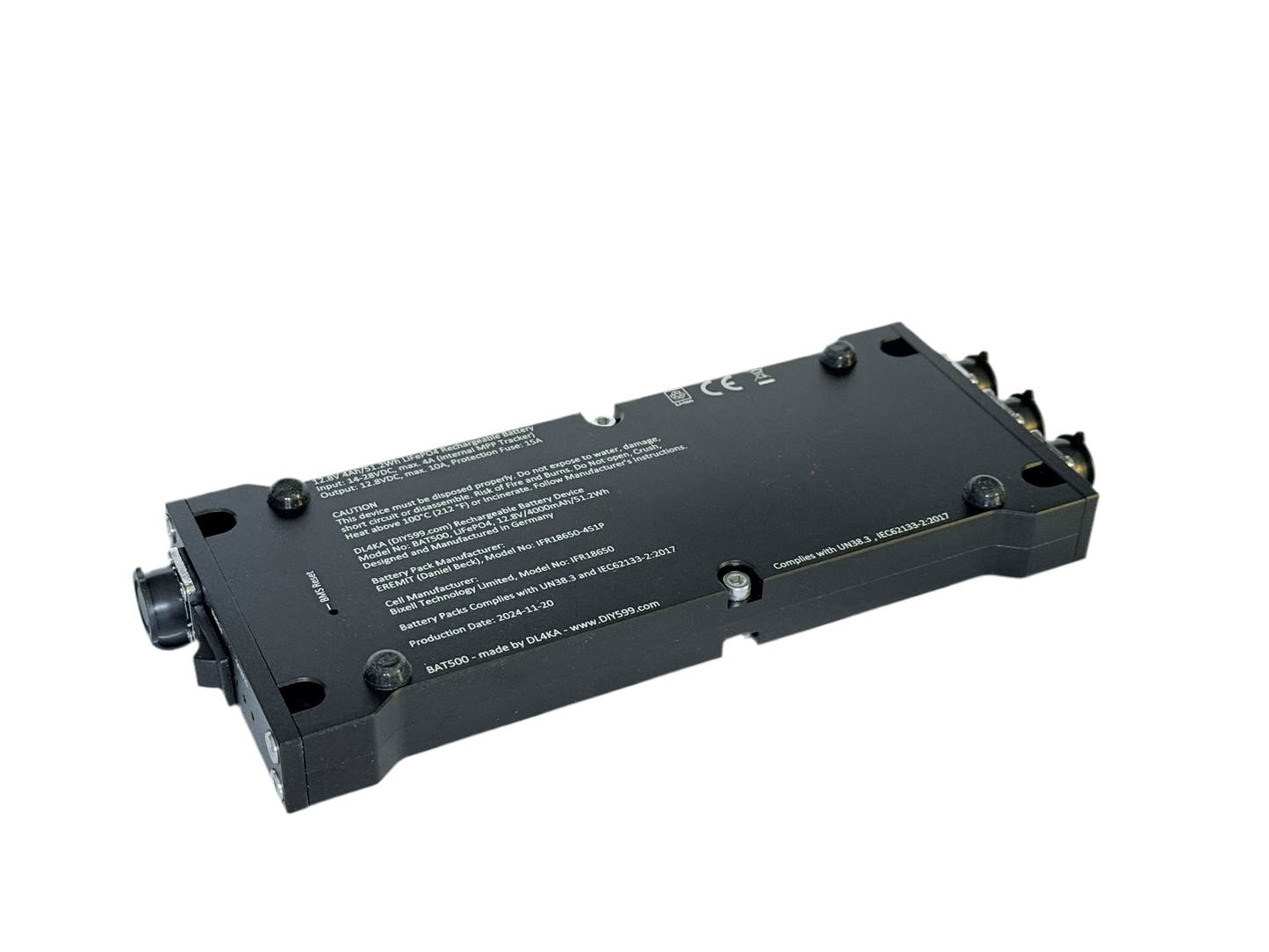

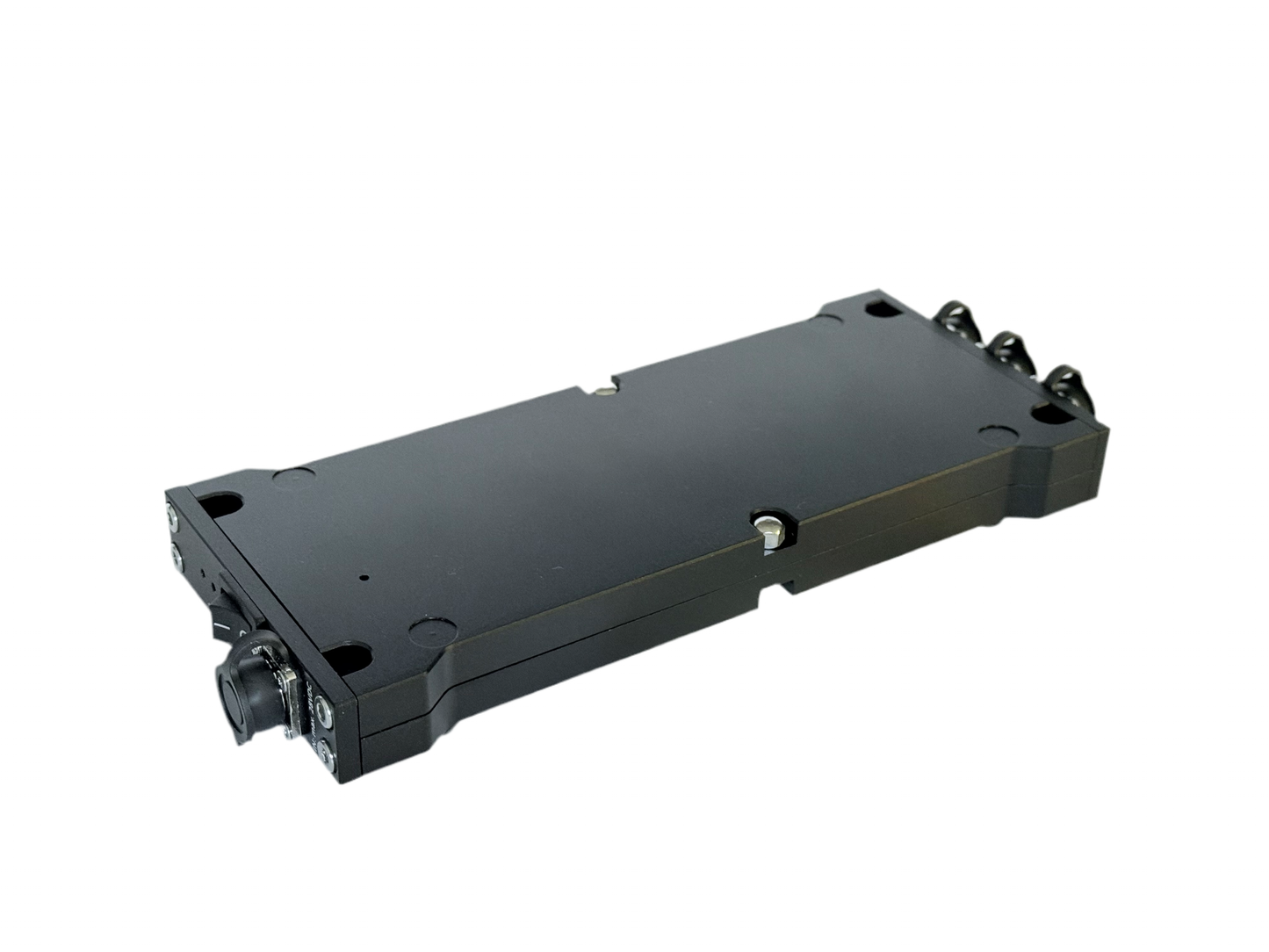

BAT500 LiFePO4 battery system

The BAT500 by DIY599 is a portable power system designed for outdoor and emergency communication activities. Here are its key features:

1. Battery Capacity: 12.8VDC, 4Ah (51.2Wh) using LiFePO4 technology.
2. Output Voltage: 12.8 VDC, with a maximum current of 10A (protected by a 15A fuse).
3. Charging Voltage: Recommended 18-22V, with a minimum of 16.5V and a maximum of 28V.
4. Size: Compact dimensions of 231 x 90 x 21 mm³.
5. Weight: Lightweight at 660 grams.
6. Solar Charging Capability: Can be charged using solar panels, making it ideal for off-grid use.

The BAT500 is a robust and efficient power solution, perfect for supporting the PA500 amplifier and other radio equipment in remote locations.
