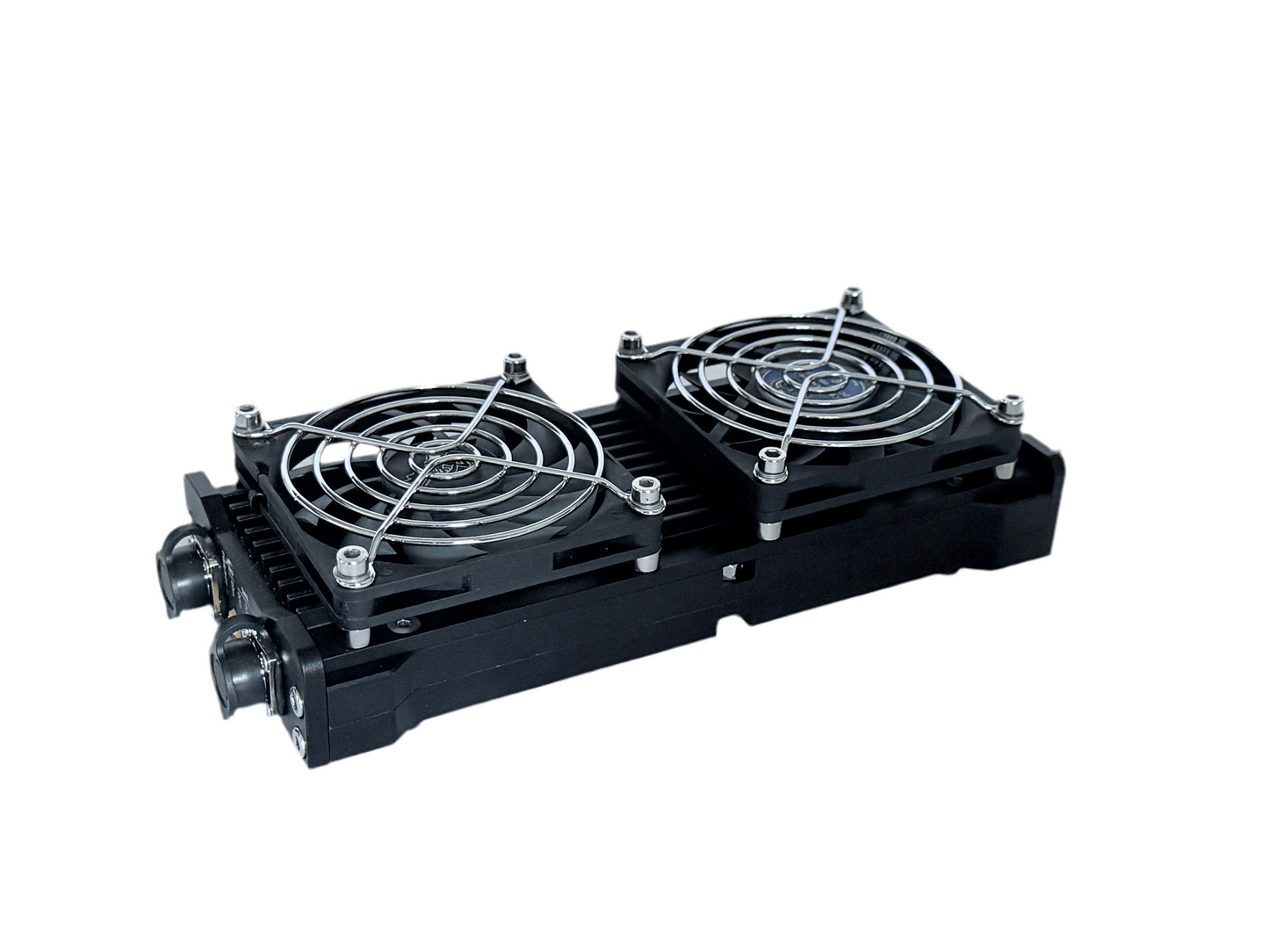

PA500E (Expedition) RF Amplifier

The PA500E Expedition Version by DIY599 is an ultra-compact RF amplifier with integrated Antenna Tuner designed for amateur radio enthusiasts. Here are its key features:

1. RF Power Output: Up to 100W peak power, depending on the mode and operating frequency¹.
2. Input Drive Level: Maximum of 5W¹.
3. Frequency Range: Covers the 80m to 10m HAM bands¹.
4. Operating Modes: Supports SSB, CW, AM, FM, and digital modes¹.
5. Current Drain: Up to 10A at 13.8V¹.
6. Integrated Automatic Antenna Tuner: Tunes suitable antennas between 80m and 10m bands¹.
7. Compact Size: Dimensions are 30mm x 207mm x 90mm, including the heatsink¹.

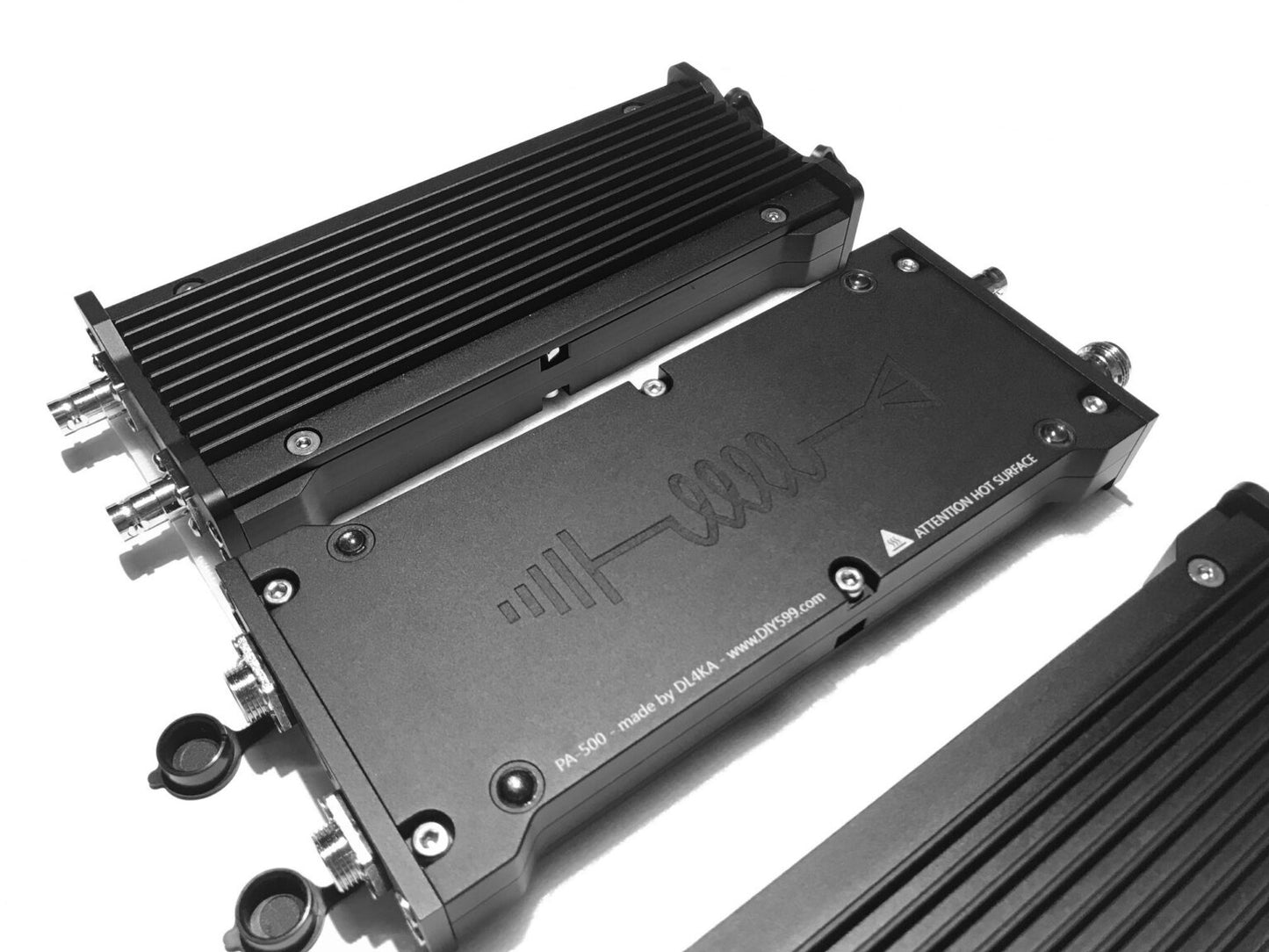

8. Robust design: Made from CNC-milled anodized aluminum, ideal for extreme conditions¹.

The PA500 is a powerful addition to any QRP operation or emergency communication setup, offering reliable performance in a durable, portable package.
